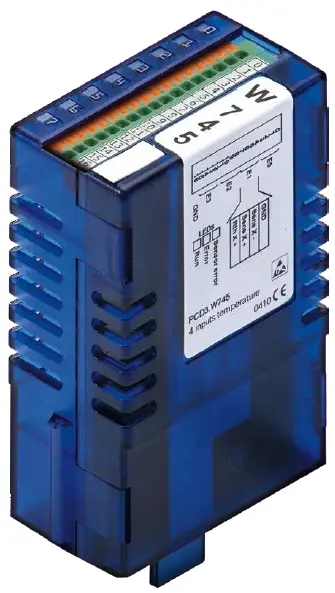

Universal temperatur modul for 4 måleinnganger, 16 bits, TC Type J & K og  4 wire Pt/Ni 100/1000.

Fra manual:

Main characteristics:
-Four input channels, each with 4 spring terminals, all inputs software configurable
-Electrical isolation between input channels and PCD ground (the channels themselves are not separated against each other)
-Integrated cold junction for thermocouple
-External cold junction compensation can be measured via channel 0
-RTD measurement with 2, 3, or 4-wire connection
-The linearization and all compensation activities as well as the conversion into °C, °F and K is done in the module (Thermocouples types R, S, T, E, N on request)
